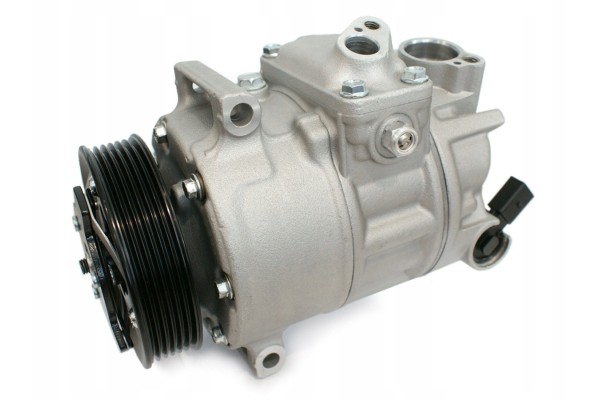

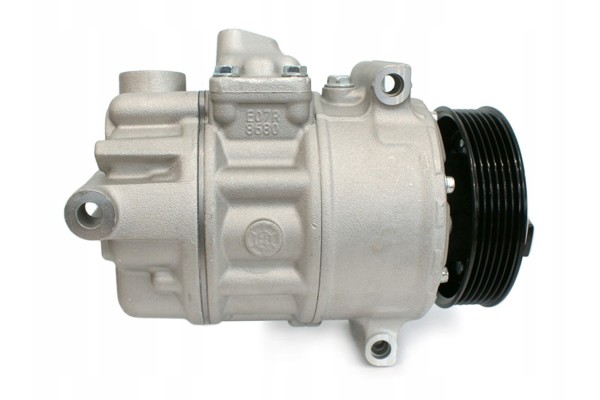

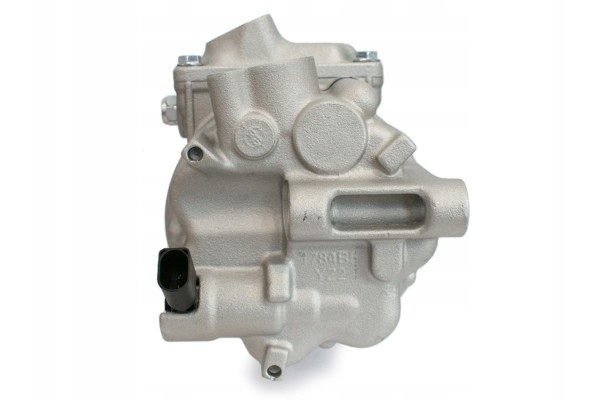

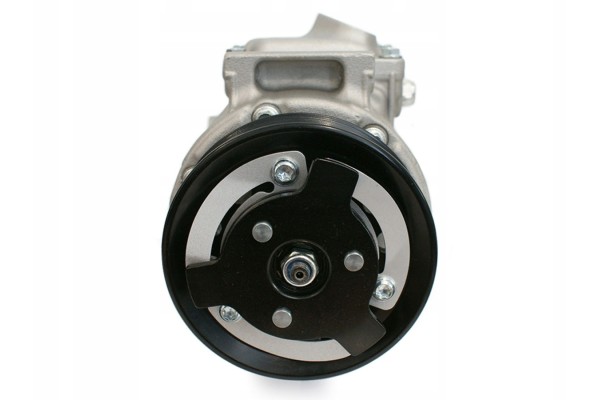

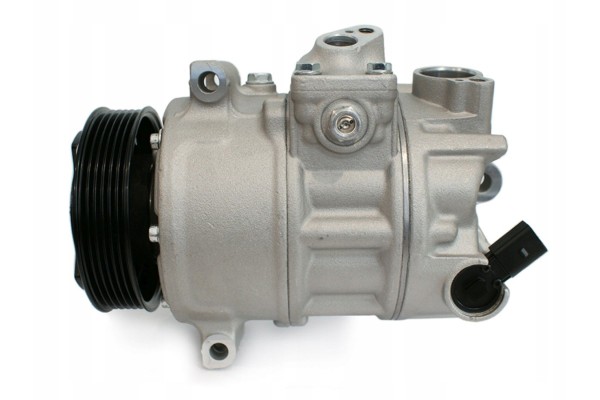

AIR CONDITIONING COMPRESSOR

• BRAND: AUDI/ VOLKSWAGEN/ SEAT/ SKODA
• COMPRESSOR STATUS: REPLACEMENT
• MANUFACTURER / EQUIVALENT: SANDEN
• APPLICATION:

  AUDI A3 1.9TDI, 2.0TDI (08-)

  SEAT ALTEA 2.0TDI (06-)

  SKODA OCTAVIA 1.9TDI, 2.0TDI (06-)

  VW GOLF 1.4, 1.6i (05-), 1.9TDI, 2.0FSI, 2.0TDI, 2.0SDI (04-) / PASSAT CC 2.0TDI, 3.6i V6 (08-) / TIGUAN 2.0TDI (07-)

• COMPRESSOR TYPE PXE16
• POWER SUPPLY VOLTAGE: 12V
• DIAMETER OF PULLEY (MEASURED PER PK) [mm]: 110
• NUMBER OF PK: 6

REFERENCE NUMBERS:

5N0820803E

If you are sending a request for compatibility with a given car model, please use the original number of the compressor, which is on the sticker on the compressor or send a photo of this sticker, because the VIN number does not always indicate the correct compressor.

When replacing the compressor, it is also necessary to replace the dehumidifier, condenser and rinse the air conditioning system. Compressor manufacturers do not accept the warranty if these conditions are not met.

The offered compressor is flooded with refrigerant oil, information about the type and amount of oil is placed on the product label. Before installation, please familiarize yourself with the oil pouring procedure and its replenishment in order to properly function the air conditioning system. Attention! Incorrect installation without taking into account the oil procedure may result in irreversible damage to the compressor.
