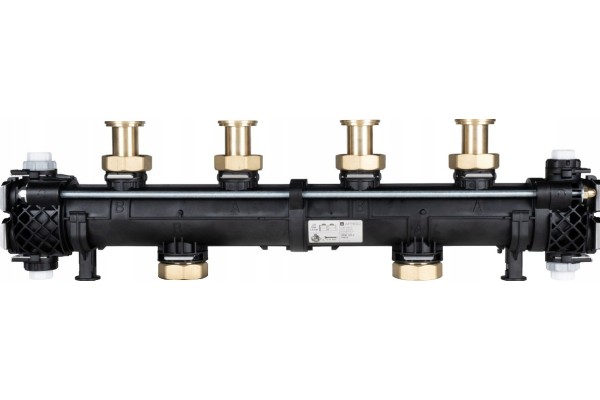

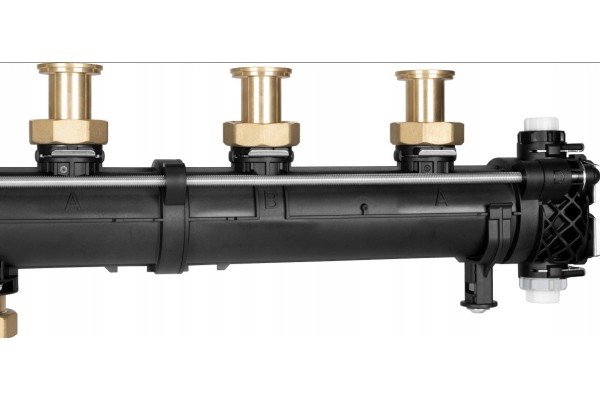

MULTIFUNCTIONAL SPLITTER ProFusion HSM 125-2 WITHOUT HYDRAULIC CLUTCH 80kW FOR 2 PUMP CIRCUITS 79622 AFRISO

Application

✅ Used in heating and cooling systems.

✅ Mounted on the wall between the heat or cold source and the pump groups.

✅ Designed for quick and convenient connection of two pump groups PrimoTherm K or another pump group with a spacing of 125 mm to a heat source.

Description

⭐ Made of polyamide PA66.

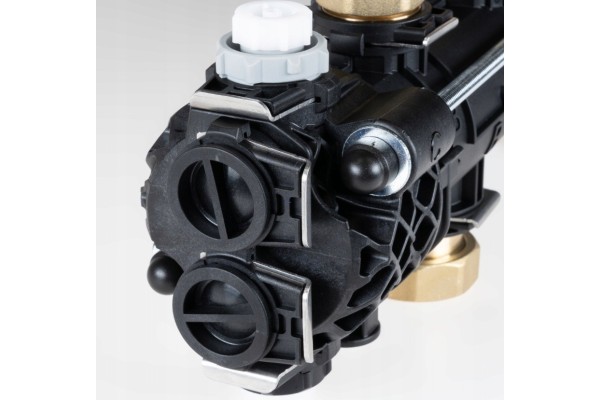

⭐ Manual vent allows you to remove the air precipitated in the distributor.

⭐ Possibility to change the distributor into a distributor clutch.

⭐ Possibility to expand with further segments / circuits.

⭐ Possibility to modify the position of the splitter segments.

⭐ Two pairs of supply and return pump circuit connections.

⭐ Connections from the installation side adapted to PrimoTherm K pump groups.

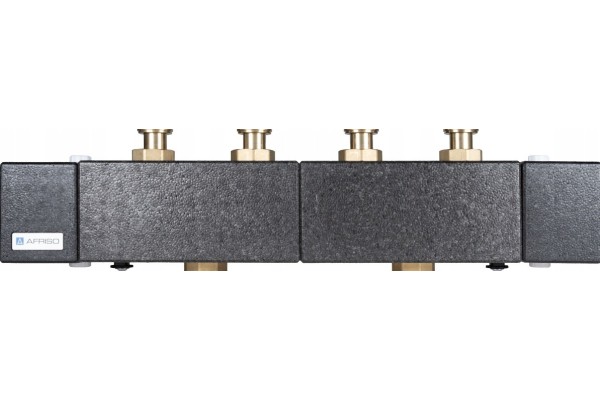

⭐ Equipped with thermal insulation.

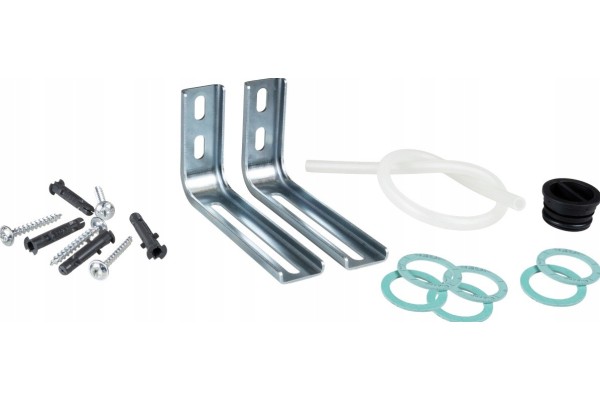

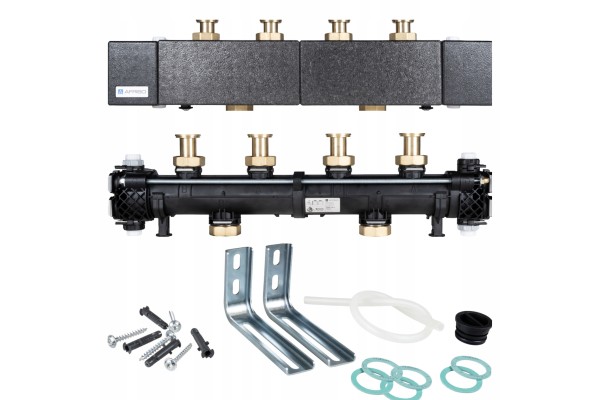

Delivery items

▶ Set of flat seals.

▶ Handles and studs for wall mounting.

▶ Splitter modification stopper.

Technical data

⚙ Number of circuits 2

⚙ Hydraulic clutch Can be converted into clutch

⚙ Connections from the installation side 4x nut G1½"

⚙ Connections from source side 2x nut G1½"

⚙ Flow rate max 3,5 m³/h

⚙ Power max 80 kW

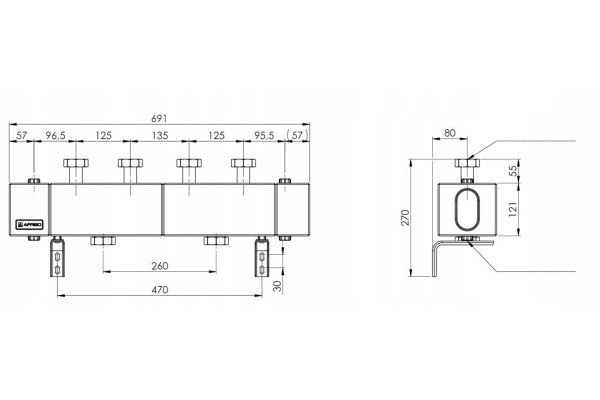

⚙ Connection spacing from the installation side 125 mm

⚙ Medium pressure max 6 bar

⚙ Medium temperature max 90°C at 3 bar, max 60°C at 6 bar

⚙ Medium water, a mixture of water and glycol with a maximum concentration of 50%
