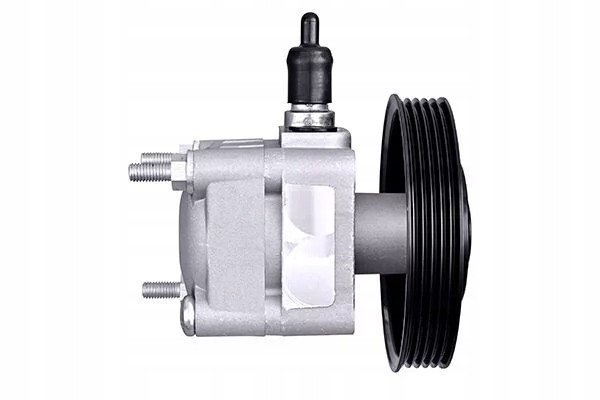

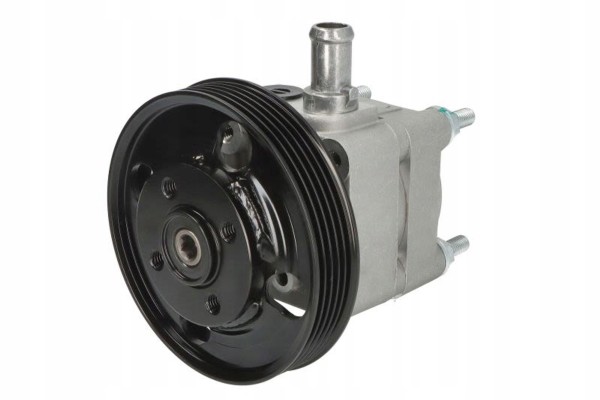

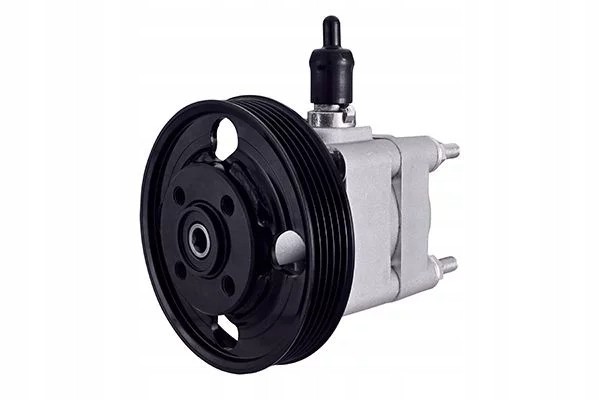

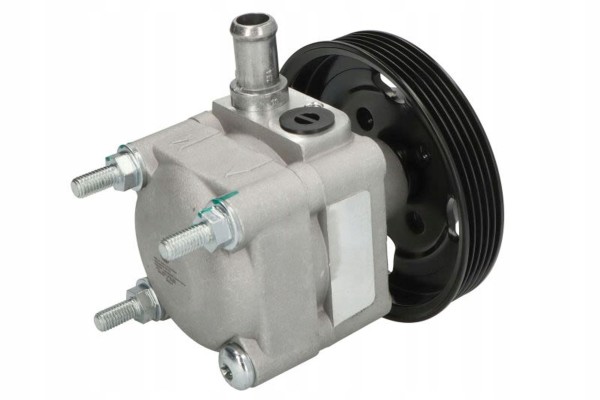

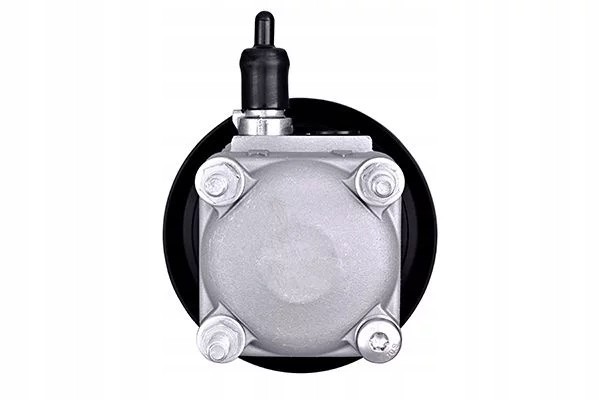

Hella 8TL 359 003-001 Hydraulic pump, steering

SUBJECT: STEERING GEAR HYDRAULIC PUMP FITS: VOLVO S80 II, V70 III, XC60 I, XC70 II, FORD MONDEO IV, S-MAX 2.4D-3.0 03.06-12.16

Product Code: 8TL 359 003-001

Information about the goods:

• Operating Mode: Hydraulic
• Pressure [bar]: 120
• Pulleys: with multi-ribbed pulley
• Ø pulley [mm]: 115
• Number of Grooves: 5
• Rotation direction: clockwise
• for steering gear manufacturers: ZF
• Assembly/disassembly is a must for professionals! :
• Code: 8TL 359 003-001
• Producer: HELLA
• GenArtName: Hydraulic pump, steering
• EAN: 4082300876147

Original part code:

• 359 003-001
• 36000689
• 6G91-3A696-NA
• K S00 000 127
• 359003001
• 36000790
• K S01 000 097
• 6G913A696NA
• 8TL 359 003-001
• 6G913A696NB

FORD S-MAX (WA6)

• FORD S-MAX (WA6) 2.5 ST 05.2006 - 12.2014 162 kW / 220HP (Year prod. from 09.2007)

FORD MONDEO IV sedan (BA7)

• FORD MONDEO IV sedan (BA7) 2.5 03.2007 - 01.2015 162 kW / 220HP (Year prod. to 09.2014)

FORD IV (BA7)

• FORD MONDEO IV (BA7) 2.5 03.2007 - 01.2015 162 kW / 220HP (Year prod. to 09.2014)

FORD MONDEO IV Turnier (BA7)

• FORD MONDEO IV Turnier (BA7) 2.5 03.2007 - 12.2012 162 kW / 220HP

VOLVO S80 II (124)

• VOLVO S80 II (124) D5 03.2006 - 08.2009 136 kW / 185HP (Year of manufacture since 08.2006, Year prod. to 05.2009, Chassis identification number (VIN) to 96665)
• VOLVO S80 II (124) 2.5 T 03.2006 - 12.2011 147 kW / 200HP (Year of manufacture since 08.2006, Year prod. to 12.2009)
• VOLVO S80 II (124) 2.4 D 03.2006 - 03.2011 120 kW / 163HP (Year of manufacture from 08.2006, Chassis identification number (VIN) to 96665)
• VOLVO S80 II (124) D5 AWD 01.2007 - 05.2009 136 kW / 185HP (Year of manufacture from 03.2008, Chassis identification number (VIN) to 96665)
• VOLVO S80 II (124) 2.5 T FlexFuel 05.2008 - 12.2011 147 kW / 200HP (Chassis identification number (VIN) up to 87000)
• VOLVO S80 II (124) 2.5 T FlexFuel 01.2010 - 12.2011 170 kW / 231HP (Chassis identification number (VIN) up to 87000)
• VOLVO S80 II (124) 2.4 D 01.2010 - 03.2011 129 kW / 175HP (Chassis identification number (VIN) up to 96665)
• VOLVO S80 II (124) 2.5 T 01.2010 - 12.2012 170 kW / 231HP

VOLVO V70 III (135)

• VOLVO V70 III (135) 2.5 T 08.2007 - 12.2009 147 kW / 200HP (Chassis identification number (VIN) to 5544, Chassis identification number (VIN) from 5545)
• VOLVO V70 III (135) 2.4 D 04.2007 - 12.2010 120 kW / 163HP (Year of manufacture since 08.2007, Year prod. from 08.2007, Chassis identification number (VIN) to 83618)
• VOLVO V70 III (135) D5 04.2007 - 12.2009 136 kW / 185HP (Year of manufacture since 08.2007, Year prod. from 08.2007, Chassis identification number (VIN) to 83618)
• VOLVO V70 III (135) D5 AWD 04.2007 - 12.2009 136 kW / 185HP (Year of manufacture since 10.2007, Year prod. from 10.2007, Chassis identification number (VIN) to 83618)
• VOLVO V70 III (135) 2.5 T FlexiFuel 05.2008 - 12.2009 147 kW / 200HP (Chassis identification number (VIN) to 67701, Chassis identification number (VIN) from 134206)
• VOLVO V70 III (135) 2.4 D 04.2009 - 12.2010 129 kW / 175HP (Year of manufacture from 05.2009, Chassis identification number (VIN) to 83618)
• VOLVO V70 III (135) 2.5 T FlexiFuel 04.2009 - 12.2011 170 kW / 231HP (Year of manufacture from 05.2009, Chassis identification number (VIN) to 67701, Year prod. from 05.2009, Chassis identification number (VIN) from 134206)
• VOLVO V70 III (135) D5 10.2008 - 12.2011 151 kW / 205HP (Year of manufacture from 05.2009, Chassis identification number (VIN) to 83618)
• VOLVO V70 III (135) D5 AWD 12.2009 - 12.2011 151 kW / 205HP (Chassis identification number (VIN) up to 83618)
• VOLVO V70 III (135) 2.5 T 04.2009 - 12.2012 170 kW / 231HP (Year of manufacture from 05.2009, Chassis identification number (VIN) to 67701, Year prod. from 05.2009, Chassis identification number (VIN) from 134206)

VOLVO XC70 II (136)

• VOLVO XC70 II (136) D5 AWD 04.2007 - 12.2009 136 kW / 185HP (Year of manufacture since 06.2007, Year prod. to 04.2009, Chassis identification number (VIN) to 5544, Year prod. since 06.2007, Year prod. to 04.2009, Chassis identification number (VIN) from 5545, Chassis identification number (VIN) to 58781)
• VOLVO XC70 II (136) 2.4 D / D4 AWD 08.2007 - 04.2016 120 kW / 163HP (Chassis identification number (VIN) up to 58781)
• VOLVO XC70 II (136) T6 AWD 01.2008 - 12.2016 210 kW / 286HP (Chassis identification number (VIN) up to 58781)
• VOLVO XC70 II (136) D5 AWD 04.2009 - 12.2011 151 kW / 205HP (Year of manufacture from 05.2009, Chassis identification number (VIN) to 58781)
• VOLVO XC70 II (136) 2.4 D 06.2009 - 12.2010 129 kW / 175HP (Chassis identification number (VIN) up to 58781)

Attention!

We recommend selecting parts based on the VIN number of the vehicle. This is extremely important because even seemingly identical models may differ in equipment, which may result in a non-matching part. Only on the basis of the VIN number we are able to accurately verify the compatibility of the offered product with your vehicle.
