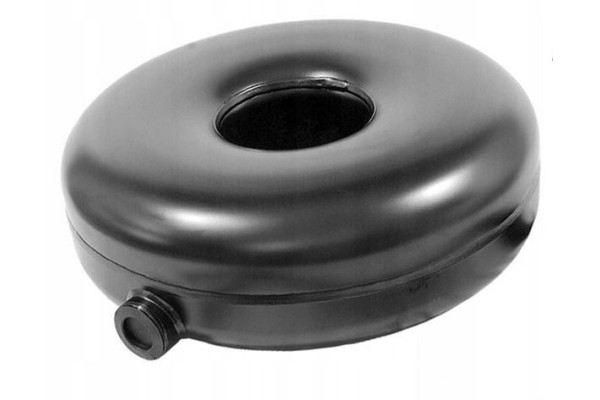

BORMECH external toroidal tank 630/225/56 ZTZ without rack (202

Product Description:

BORMECH external toroidal tank 630/225/56 ZTZ without rack (2026) - car toroidal external tank for storing LPG liquid gas produced by Bormech.

Description of application:

BORMECH external toroidal tank 630/225/56 ZTZ without rack (2026) - a high-quality toroidal tank for storing LPG liquid gas used as fuel for vehicle propulsion. Most often mounted in place of the spare wheel under the car.

BORMECH external toroidal tank 630/225/56 ZTZ without frame (2026) - a tank with an internal armature nozzle, adapted to cooperate with complex fittings in the form of a multivalve.

BORMECH external toroidal tank 630/225/56 ZTZ without rack (2026) - the tank can only cooperate with multivalves approved with it.

The list of approved multivalves can be found in the tank attestation, sometimes called the tank passport or tank approval. In addition to the multivalves approved for operation together with the tank, this document also contains a protocol from the tank test and a decision allowing it to be put into service issued by the Transport Technical Supervision (TDT).

BORMECH external toroidal tank 630/225/56 ZTZ without rack (2026) - LPG tank is allowed to operate for a period of 10 years. The limit date of this period (counting from the date of manufacture) is determined by the data from the vessel nameplate (the year and month of the original test of the vessel at the manufacturer is indicated on the plate).

Technical data:

BORMECH external toroidal tank 630/225/56 ZTZ without rack (2026):

• diameter - 630 mm,
• height - 225 mm,
• geometric capacity - 56 l,
• angle of the head under the multivalve - 0 degrees,
• execution - class 1,
• test pressure - 3,00 MPa,
• burst pressure - min. 6,75 MPa,
• execution - according to UNECE Regulation No 67 R-01.

Product Features

• Tank Type: External Toroidal
• Year of manufacture: 2026
• Diameter: 630 mm
• Height: 225 mm
• Water capacity: 56 l
• Usable capacity: 44.8 l

Additional information

• Product code Nagaz: 77. 632 R26
• Producer: BORMECH
• Manufacturer code: ZTZ-T4B
• Approval number: E20*67R03/00*001067*
